Dividing circular portions into 3 and 5 similar parts
Converse rules and a numeric example (6 divided by 3 = 2) for equal segments.

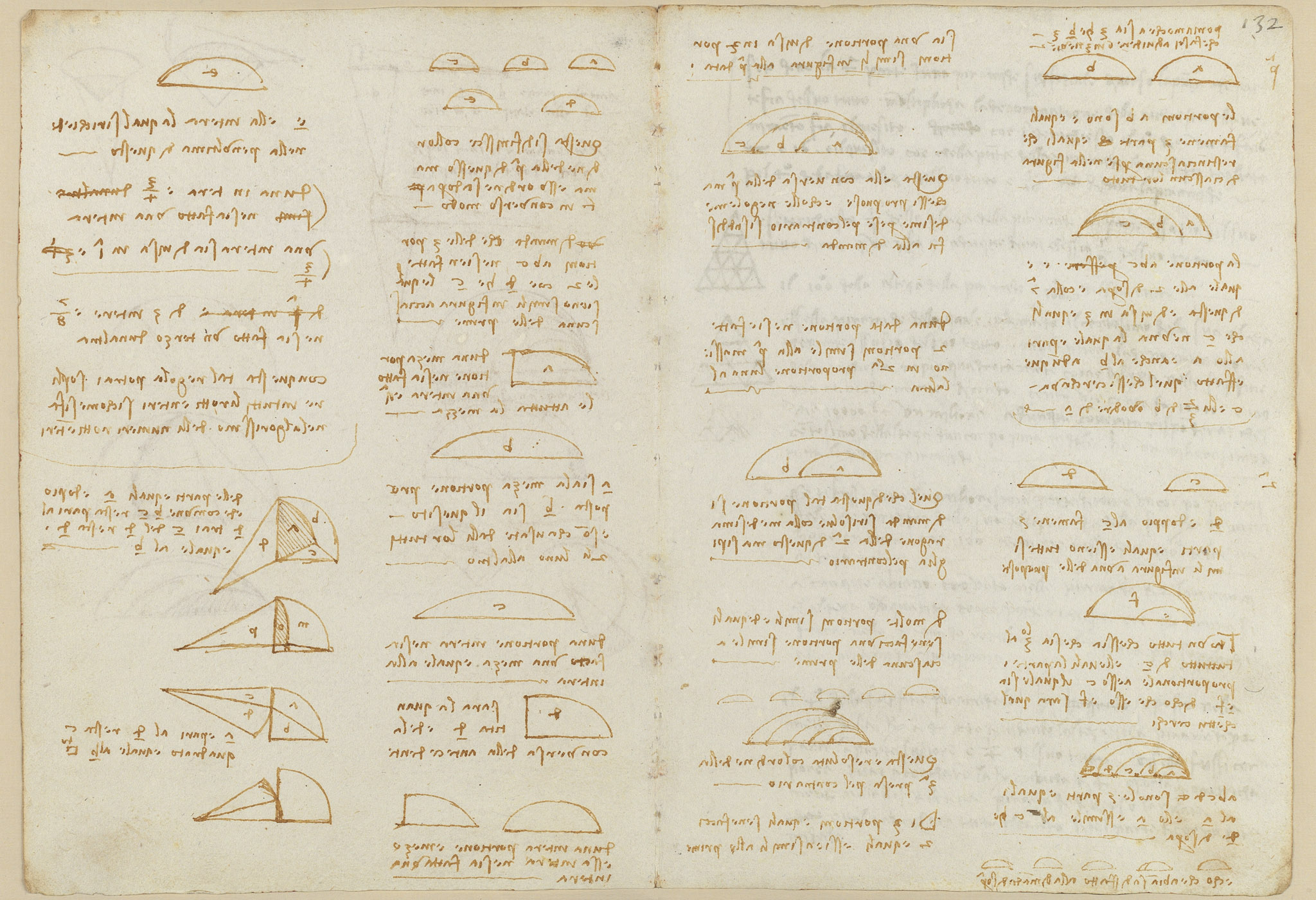

Continuing the segment geometry, Leonardo divides equal 'portions' into three and five parts that each keep the shape of their whole, illustrated with lettered figures a b c and a b c d e (3, 5, 10, 11). A numeric example - a and b each 3, making 6, divided by 3 to give 2 - anchors the method (1). Several propositions state the converse operations: making 2 similar portions from one, or 2 equal portions from 3, using the same rules taken in reverse (13, 15, 17, 18). He closes that the demand set above has been satisfied (12).
On this page
Numeric example: 6 divided by 3 gives 2
Leonardo supposes a is 3 and b is 3, which makes six; dividing 6 by 3 gives 2. The arithmetic underpins the geometric division of the portions into equal parts.
Portion a b c divided into three equal parts
The portion a b c equals the 2 above and, with the seventh proposition, is divided into 3 equal parts, of which c is one, equal to a and also to b. So what was sought is done, c being 2/3 of b, that is of a.
Dividing d (double c) into five similar parts
Since d is double c, it is to be made into 5 equal parts, all similar in figure to one of those proposed. Finding a whole triple the whole of c and removing the part proportional to c yields e f, the quantity sought.
Converse: from one portion to two in double ratio
This is the converse of the first proposition, satisfied by the same rules taken in reverse. From a given portion 2 portions are to be made, similar to the first but standing in double proportion one to the other.
