Masonry of the fortress and moat walls
Wall dimensions (6 x 2 x 140 braccia) and volumes: 1280 and 1640 canne

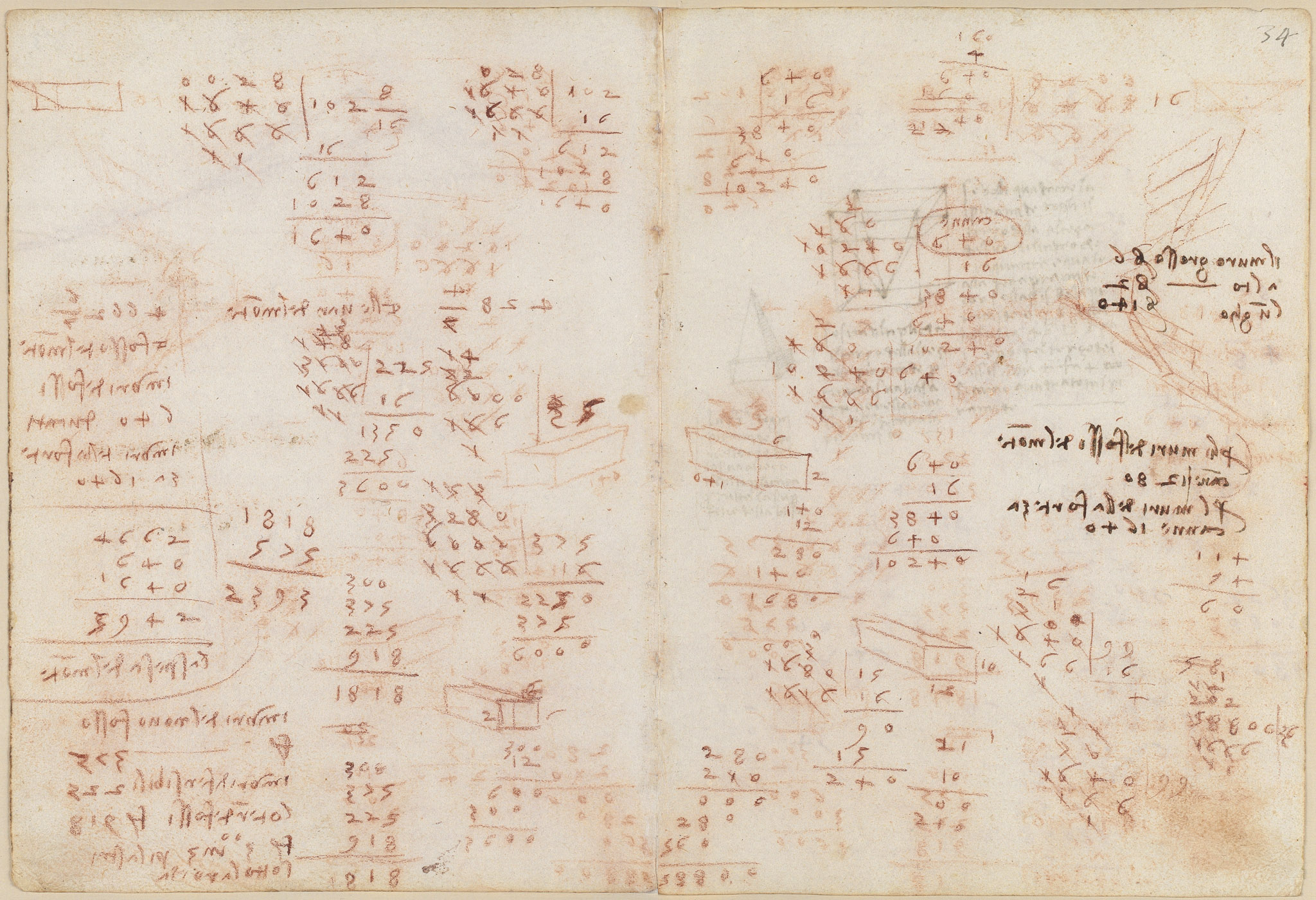

Folio 34r computes the masonry for the fortification's walls. One note gives the wall as 6 braccia thick, 2 high and 140 long, and another records 1280 canne for the walls of the hill's moat and 1640 canne for the walls of the fortress. The rest of the sheet is filled with the supporting multiplications and divisions (640x16, 160x4, 140x12 and the like) and small red-chalk box figures of wall segments.
On this page
Dimensions of the wall (6 braccia thick, 2 high, 140 long)
A note at the right sets down the wall as 6 braccia thick, 2 braccia high and 140 braccia long. These figures drive the volume calculations for the fortification's masonry.
Quantities of walling: moat walls 1280 canne, fortress walls 1640 canne
For the walls of the hill's moat, 1280 canne are required, and for the walls of the fortress, 1640 canne. These are the totals of masonry to be raised on site.
Volume multiplications behind the wall estimates (640 x 16 = 10240)
The sheet is worked through with the products supporting the wall volumes, such as 640 times 16 giving 10240 and 160 times 4 giving 640, together with divisions reducing the results to canne. The number 140 (the wall's length) recurs in a parallel multiplication (140 x 12 = 1680).
