Squaring the lune; equating curved and rectilinear triangles
A lunule made equal to a triangle by lending and returning circular segments; cutting a curved pyramid at mid-height

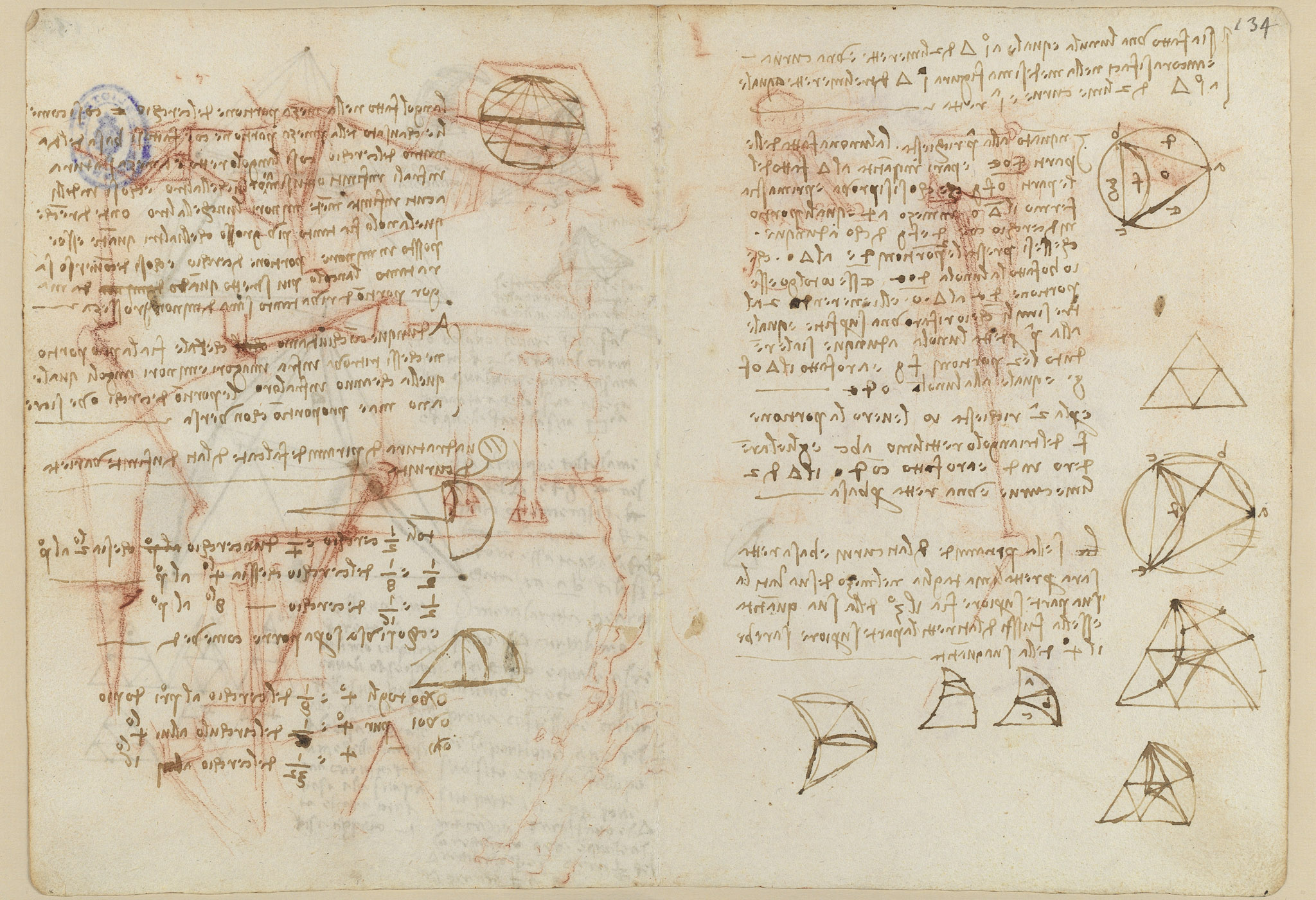

A geometry page working the classical squaring of the lune and the equivalence of curved-sided and straight-sided triangles. Leonardo sets a triangle o amid four equal circular portions d e f g and shows that the lunule d o e equals the triangle o f g by lending the segments d e and returning the equal segments f g. He then converts a rectilinear triangle a b c into a triangle of two curved sides and one straight base by moving the segment f to d. A final note states that a curved-sided pyramid cut by a straight line through the middle of its sides has an upper part equal to one third of the whole, whereas a straight-sided one would give one quarter.
On this page
Lunule equal to a triangle of two straight sides and one curve
The task is to make a lunule equal to a triangle of two straight lines and one curved, and within the same figure a triangle of three straight lines equal to a triangle of two curved lines and one straight.
Proof equating lunule d o e with triangle o f g
With triangle o fixed amid four equal portions d e f g, lending the two portions d e makes the lunule d o e; taking d e away from o and returning the equal portions f g remakes a surface equal to that lunule, so triangle o f g equals lunule o d e. Then removing portion f from rectilinear triangle a b c and returning it at d makes a triangle of two curved lines and one straight base with d o.
Cutting a curved-sided pyramid at mid-height
A pyramid of curved sides and straight base, cut by a straight line through the middle of its sides, has an upper part of one third of its quantity. If its sides were straight, the upper part would instead be one quarter of its quantity.
