Why a Sunlit Sphere Casts a Columnar, Not Conical, Shadow
A sun-and-earth shadow diagram, with a spring-and-cam mechanism below

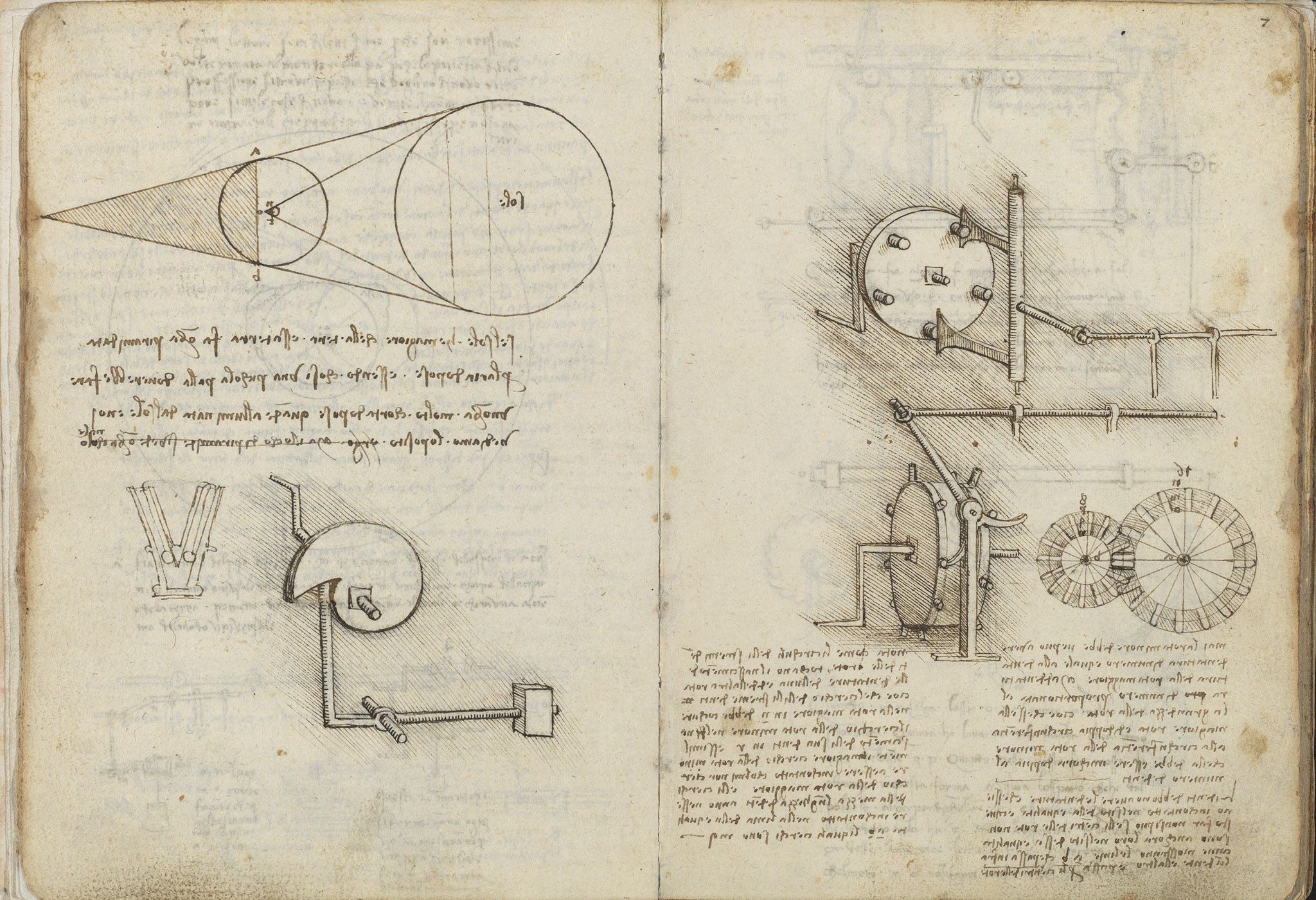

The upper diagram, labeled sole (sun) with points a, n, o, t, b, sets out a paradox of shadows: if the sun is larger than the earth, the earth should cast a pyramidal (cone-shaped) shadow tapering behind it, and a small ball lit by the sun ought to cast only a very short shadow. Leonardo observes the opposite, noting that in place of a pyramid one sees a columnar shadow. The lower half of the sheet carries a mechanical study, drawn but not transcribed, showing V-shaped sprung arms driving a disc or cam turned by a crank and a long screw. Faint offset from the facing pages shows through the paper.
On this page
The paradox of the sunlit sphere's shadow
If the sun is larger than the earth, the earth casts a pyramidal shadow through the air behind it. On that reasoning a small ball lit by the sun should cast a very short shadow, yet Leonardo says we see the opposite: in place of a pyramid, a columnar shadow appears. The diagram is labeled sole (sun) with points a, n, o, t, b.
A sprung cam turned by crank and screw
The lower half of the page carries an untranscribed mechanical study: a pair of V-shaped sprung arms at left and a disc or cam driven by a bent crank, with a long threaded screw running to a block at right. No accompanying text for this device is included in the transcription.
