Intermittent Reversing Gear and the Momentum of Flywheels
How stored impetus could let one water-driven wheel grind two mills

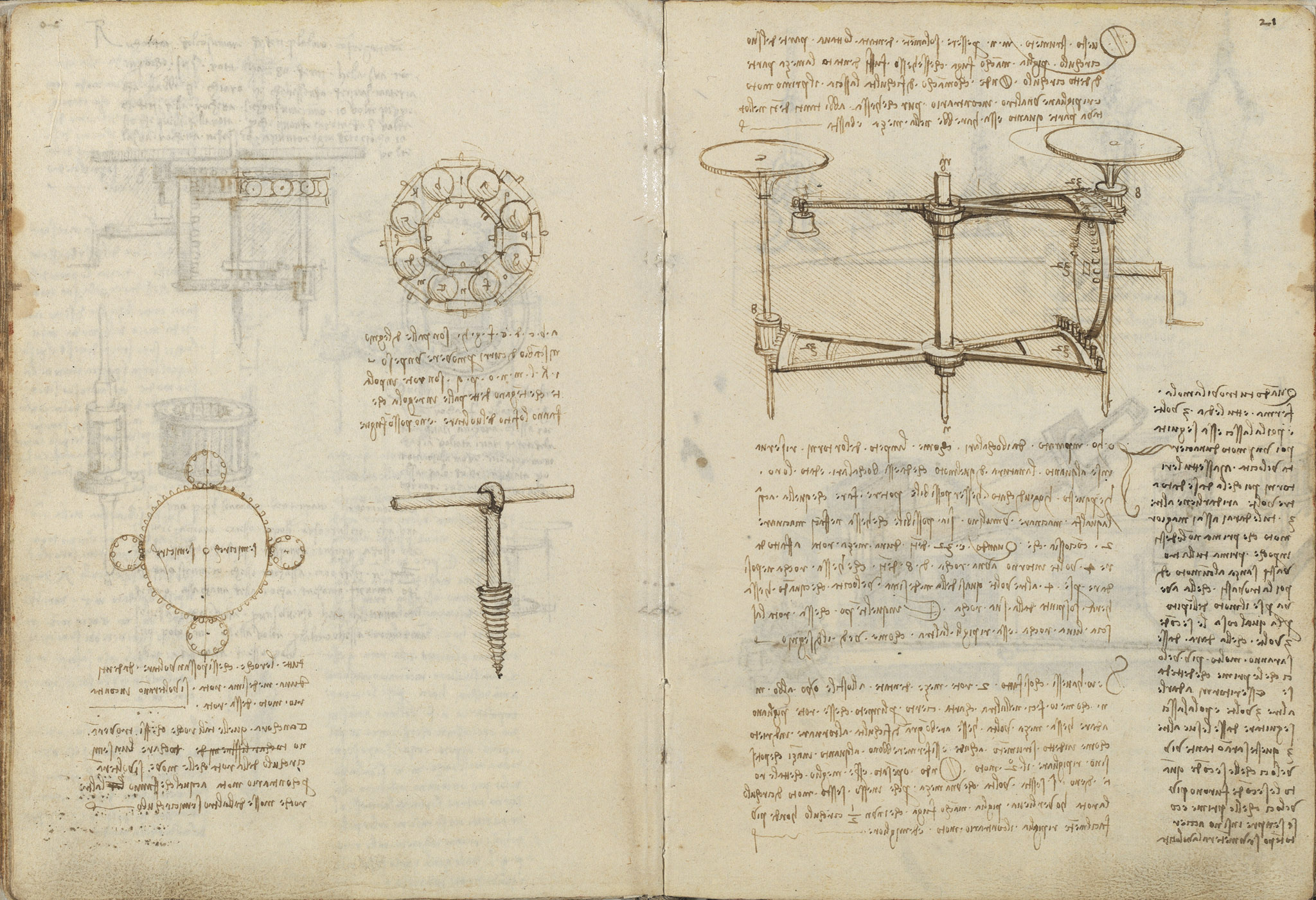

The large drawing shows an upright shaft m n carrying two broad flywheel discs and turned by a hand crank at the right, a mechanism for storing rotational impetus. Leonardo argues that toothing only an eighth of a wheel's circle lets it leave off one motion and reverse more easily than toothing half of it, provided the tooth count is preserved. Drawing an analogy to the potter's wheel, which keeps turning after it is driven, he proposes that the water grinding one mill might be made to grind two, and observes that a millstone given repeated sets of three turns keeps gaining speed.
On this page
Toothing an eighth of the wheel to ease its reversal
Because the instrument m n is toothed over only an eighth of its circle, it takes up less run than if half the circle were toothed. It therefore leaves the first motion and takes up the contrary one with less difficulty, so long as the eighth part carries as many teeth as the half would have.
The potter's stored impetus driving two mills
Leonardo says he learned from the potters how the impetus of their wheels retains the motion given them. He reasons that a 32-tooth half wheel driving an 8-tooth pinion four turns leaves the pinion able to give four more of itself, so that one head of water might grind two mills as the wheel alternately takes up one pinion and then the other.
A millstone gaining speed with each set of three turns
A millstone found at rest and given three turns runs on at some speed of its own. Given three more it moves much faster, because it already carries the impetus of the first; each further set of three exceeds the last, so the speed keeps increasing up to a certain point.
Tooth counts labelling the two wheels
The numbers beneath the figure record the toothing of the wheels and pinions on the shaft m n, reading m, 8, 32, 32, 8, 32, 32, n.
